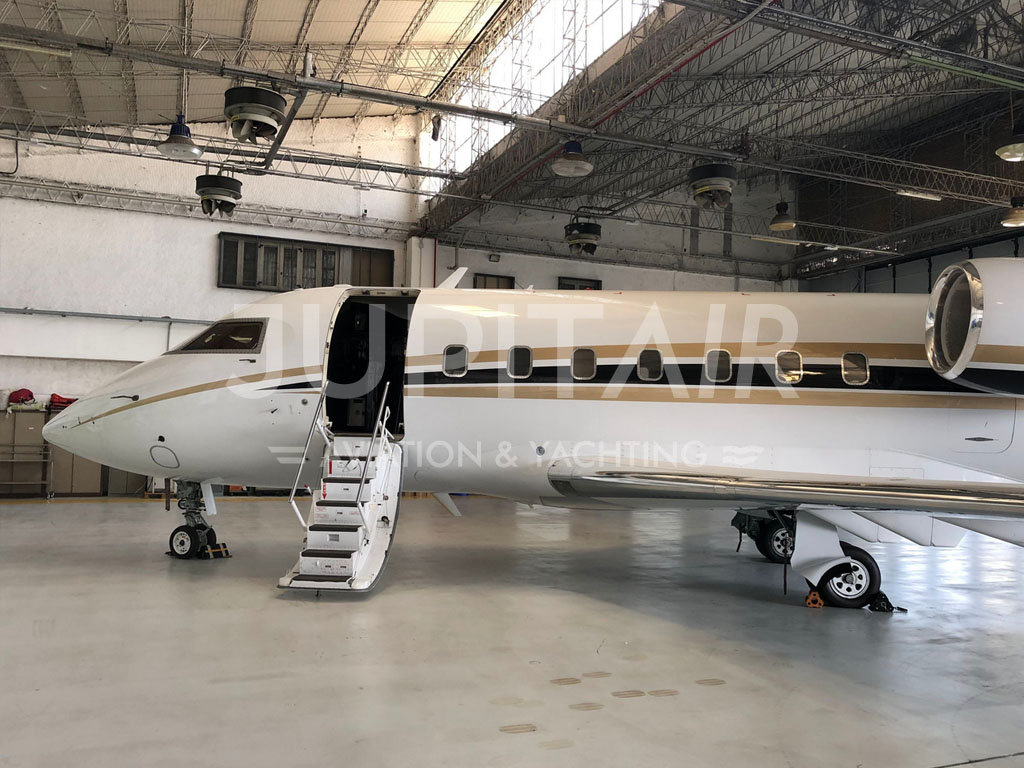

Airframe
- Aircraft Total Flight Hours: 11.072 Hours
- Landing Cycles: 6791 as 26 September 2011
- Engine General Electric Hours/ Cycles:
- #1 11072 Hours / 06791 Cycles
- #2 11072 Hours / 06791 Cycles
- GE OnPoint Plan,
- 2021 Rate $321 Per Engine Per Hour,
- 300 Hours Min. Per Year, 2 Hour Leg
Features
- Increased MTOW 48,200 LB (21,863 KG) SB-604-11-001,
- Solid state 120 Minute Recording Time Cockpit Voice Recorder (CVR) SB-604-23-005,
- Installation Flight Data Recorder (FDR) SB-604-31-005,
- Installation of Pulsating Light System SB-604-33-001,
- Installation of Metric Altitude Switch SB-604-34-010,
- REVSM to 1000 FT SB-604-34-012 R4,
- Installation TCAS SB-604-34-017,
- Installation Dual GPS SB-604-34-018 R1,
- Upgrade Crew Alerting,
- Flight Management System Basic Precisions Plus SB-604-34-031,
- Introduction of V-Speed Data Bases SB-604-34-035,
- Transponder Mode S Surveillance/ACAS II for Precision Plus SB-604-34-037,
- Mode S Enhanced Surveillance for Precisions Plus SB-604-34-040 R1,
- TCAS II Change 7.1 Upgrade SB-604-34-060,
- Upgrade to 36-150 (CL0 Auxiliary Power Unit (APU) SB-604-49-006 R1,

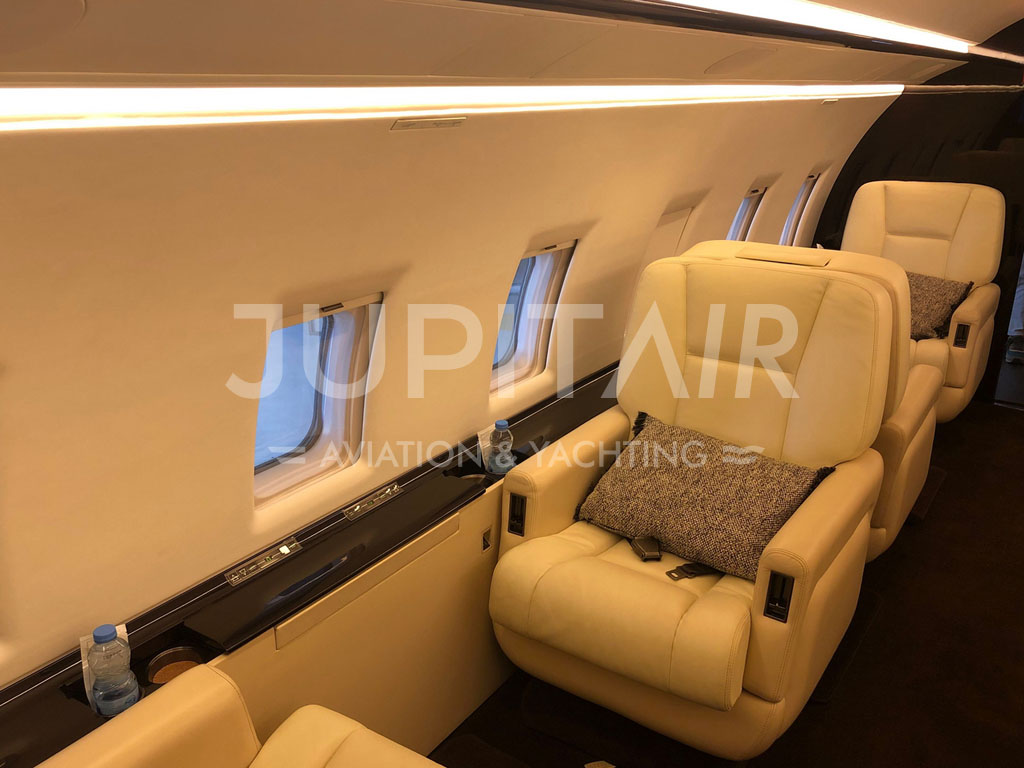

- Installation Additional Cabin Windows SB-604-56-001
Avionics

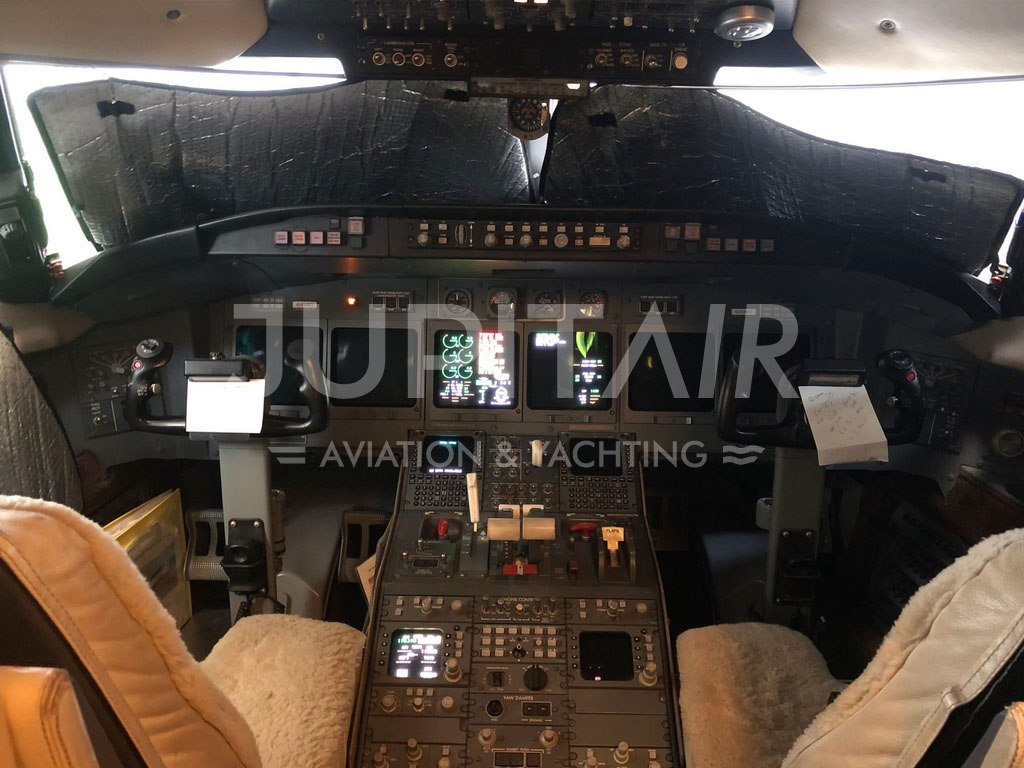

- Dual Collins FGC-3002 / Collins Pro Line 4
- Communication Radios: Dual Collins VHF-422C
- EFIS: Collins EFD-4077 w/MFD displays
- Flight Director: Dual Collins FGC-3002
- GPS: Dual GPS-4000
- IRS: Dual Litton LTN-101
- Radar Altimeter: Collins ALT-55B
- TAWS: Honeywell Mark V EGPWS
- Weather Radar: Collins WXR-854 Color
- Data Control Units: Dual Collins DCU-4000 DCU
- DME: Collins DME
- CVR: L3 CVR
- FDR: L3 FDR
- FMS: Dual Collins FMC-6000
- Hi Frequency: Dual Collins HF-9031A w/SELCAL
- Navigation Radios: Dual VIR-432
- SATCOM: AirCell Axxess EZ Airborne
- Transponder: Dual Collins TDR-94D Mode SS
- ADC: Dual Collins ADC-850 ADC
- ELT: Artex C406-2 MHz ELT w/Nav
- ADF: Dual Collins ADF
Weights
- 48,300 LBS. Maximum Ramp Weight 21,908 KGS
- 48,200 LBS Maximum Take-Off Gross Weight 21,863 KGS
- 38,000 LBS. Maximum Landing Wt. 17,237 KGS
- 32,000 LBS. Zero Fuel Weight 14,515 KGS
- 28,239 LBS. BOW (Overwater) 12,809 KGS
- 19,582 LBS. Total Fuel Weight (2963 USG) 08,882 KGS
- 26,491 LBS. Empty Weight (04-2019) 12,270 KGS
These specifications are presented as introductory information only. They do not constitute representations or warranties of any kind. Accordingly, you should rely on your own inspection of this aircraft. The aircraft is subject to prior sale, and/or removal from the market.
